120w outdoor flood lighting LVD FY-T005 manufacturer from China Wuhu Fengyun Energy Technology Co., Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Anhui, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FY-T005

Production Capacity: 10000pcs/month

Delivery Date: According to the contrast

Application: Square

Operating Voltage: 220-240v

Brand Name: fengyun

Power: 40W-300W

color temperature: 2700k-6500k

Means of Transport: Land

Packing: According to the contract

Lighting Bulbs & Tube: Others

Finishing Color: White

Body Material: Aluminum

Certiflcation: CE, FCC, ROHS, CCC, ISO

light effect: 70-80lm/w

Outdoor flood lighting
Energy saving 50%-90%
Low frequency
Super long life 100,000hours
Environment protect

I Features

1 No electrode or filament to burn out

2 High power factor PF>0.98

3 Perfect color rendering index CRI>80Ra

4. High lumen efficiency: 80Lm/W

5 Color temperature 2700k-6500k

6 Light power failure: 60.000hrs

7 EMC meet the international L-level

8 IC-controlled electronic ballast.

9 Harmonic content <4%(120v), <5%(220v), <9%(277v)

II Advantages

1 Super long life 100,000hrs

2 Energy saving 50%-80%

3 Instant start, milliseconds

4 No flicker and glare, protecting eyes

5 Amalgam inside, Eco-friendly

6 Perfect color reducibility

7Wide temperature range -25 to 50°C

III Benefits

1 Reduces relamping cost

2 Reduces electricity cost

3 Increases safety and security

4 Health and Environmental safety

5 Electrical grid safety

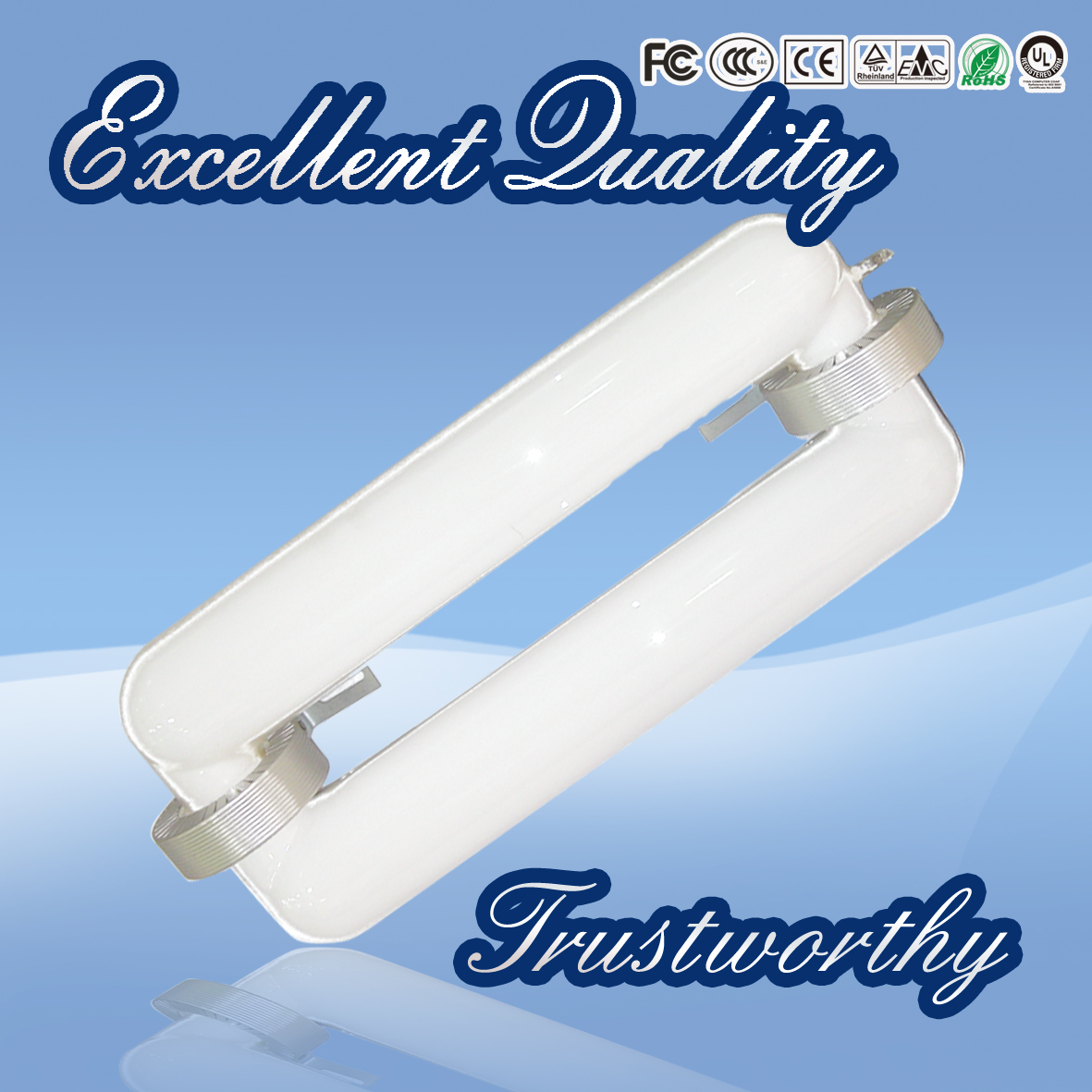

Low frequency induction lamp specifications
Type
guarantee
Voltage(v)
Rated luminous (plm)
Available (plm)
Operate power(w)
Size (mm)
Color index
FY-WDJ-40W
5 years
220/120/277/347/24/12
2800
3900-4600
43
150*114*89
80
TY-WDJ-80W
5 years
220/120/277/347
6400
8600-11100
84
250*140*99
80
FY-WDJ-120W
5 years
220/120/277/347
8600
15500-18000
126
320*140*99
80
FY-WDJ-150W
5 years
220/120/277/347
12000
19500-22000
157
320*140*99
80
FY-WDJ-200W
5 years
220/120/277/347
16000
28000-30000
208
400*148*110
80
FY-WDJ-300W
5 years
220/120/277/347
24000
45000-48000
316
500*152*110
80
Remarks: color temperature 2700k-6500k
Low frequency induction lamp electronic ballast specifications
Type
Voltage
current
Power factor
Operating temperature
Frequency
Size
FY-WZC040W220V
175-265VAC
0.19A
0.95
-25 to 50℃
230KHZ
L207*W96*H48
TY-WZC080W220V
175-265VAC
0.38A
0.98
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC120W220V
175-265VAC
0.55A
0.98
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC150W220V
175-265VAC
0.69A
0.98
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC200W220V
175-265VAC
0.92A
0.99
-25 to 50℃
230KHZ
L232*W120*H59
FY-WZC300W220V
175-265VAC
1.39A
0.99
-25 to 50℃
230KHZ
L232*W120*H59
FY-WZC040W120V
90-150VAC
0.34A
0.95
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC080W120V
90-150VAC
0.67A
0.98
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC180W120V
90-150VAC
1.28A
0.98
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC200W120V
90-150VAC
1.68A
0.99
-25 to 50℃
230KHZ
L232*W120*H59
FY-WZC40W277V
90-305VAC
0.16-0.35A
0.95
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC80W277V
90-305VAC
0.32-0.67A
0.98
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC120W277V
90-305VAC
0.47-1.28A
0.98
-25 to 50℃
230KHZ
L207*W96*H48
FY-WZC200W277V
90-305VAC
0.78-1068A
0.98
-25 to 50℃
230KHZ
L232*W120*H59
FY-WZC300W277V
90-305VAC
1.17-2.52A
0.98
-25 to 50℃
230KHZ
L232*W120*H59
